Using TileTensor
A
TileTensor
provides a view of multi-dimensional data stored in a linear array. TileTensor
abstracts the logical organization of multi-dimensional data from its actual
arrangement in memory. You can generate new tensor "views" of the same data
without copying the underlying data. This facilitates essential patterns for
writing performant computational algorithms, such as:

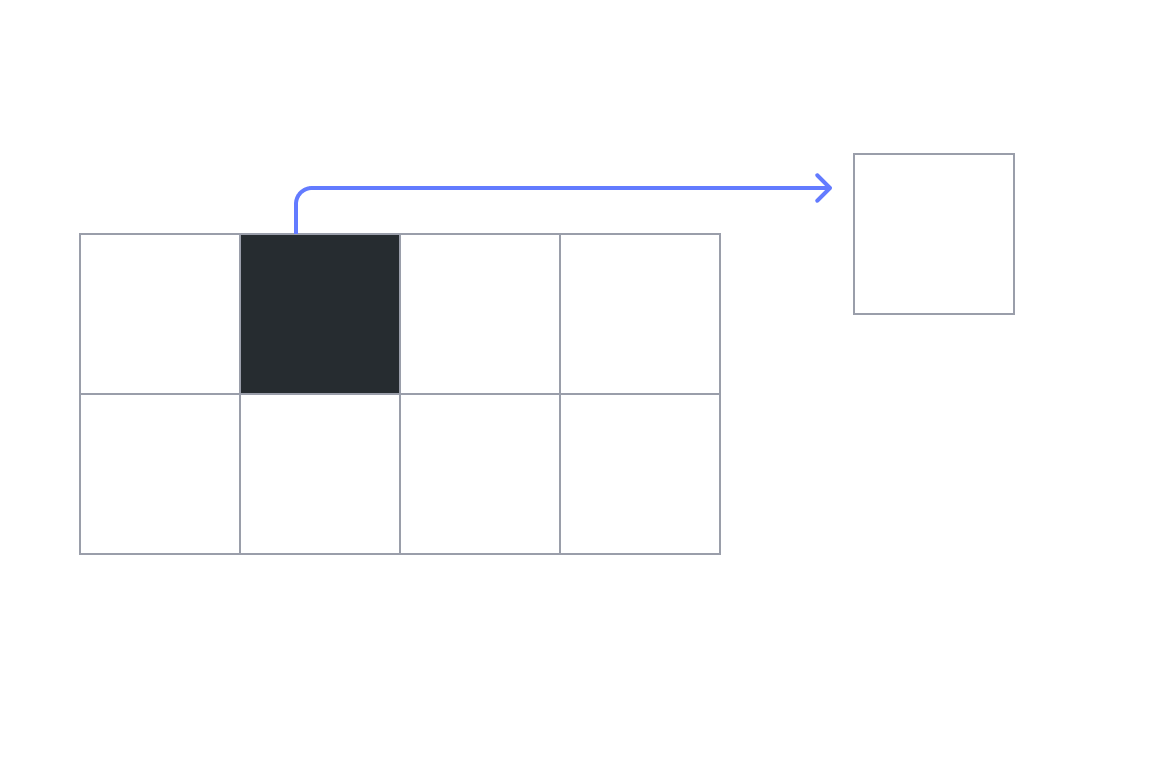

- Extracting tiles (sub-tensors) from existing tensors. This is especially valuable on the GPU, allowing a thread block to load a tile into shared memory, for faster access and more efficient caching.
- Vectorizing tensors—reorganizing them into multi-element vectors for more performant memory loads and stores.

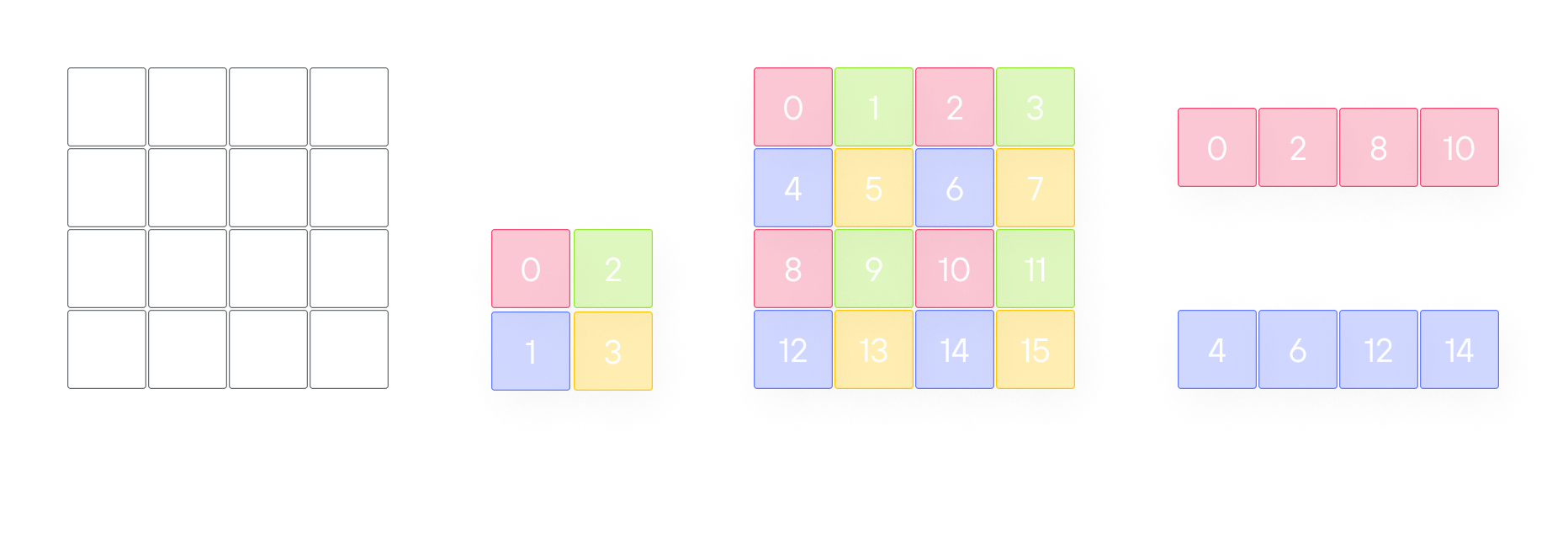

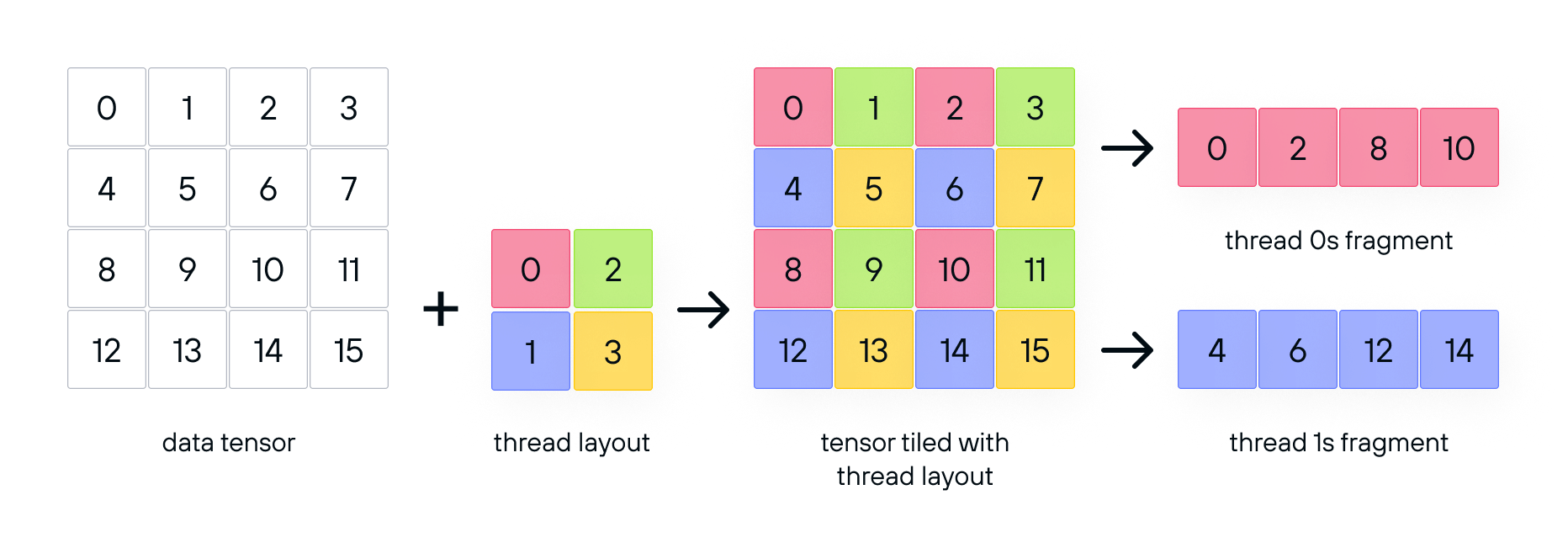

- Partitioning a tensor into thread-local fragments to distribute work across a thread block.
TileTensor is especially valuable for writing GPU kernels, and a number of
its APIs are GPU-specific. However, TileTensor can also be used for
CPU-based algorithms.
A TileTensor consists of three main properties:
- A layout, defining how the elements are laid out in memory.
- A
DType, defining the data type stored in the tensor. - A borrowed storage handle referring to memory owned elsewhere. The tensor's
Enginedetermines how this handle is represented.
Figure 1 shows the relationship between the layout and the storage.

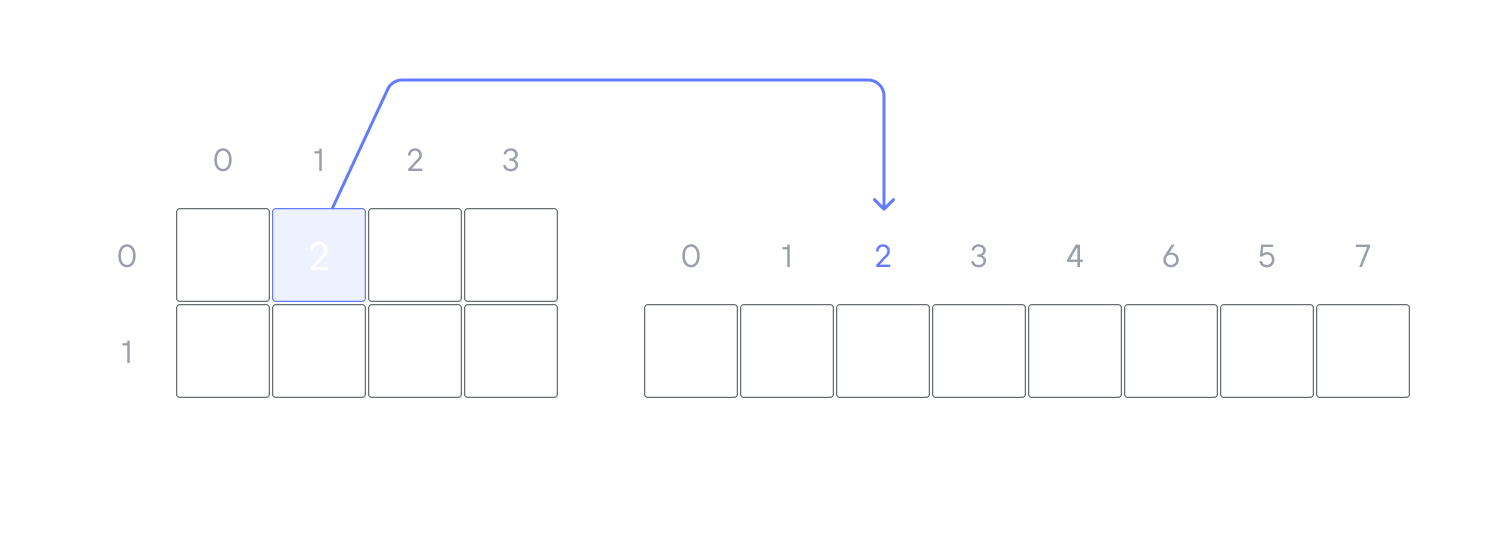

Figure 1 shows a 2D column-major layout, and the corresponding linear array of storage. The values shown inside the layout are offsets into the storage: so the coordinates (0, 1) correspond to offset 2 in the storage.
Because TileTensor is a view, creating a new tensor based on an existing
tensor doesn't require copying the underlying data. So you can easily create a
new view, representing a tile (sub-tensor), or accessing the elements in a
different order. These views all access the same data, so changing the stored
data in one view changes the data seen by all of the views.

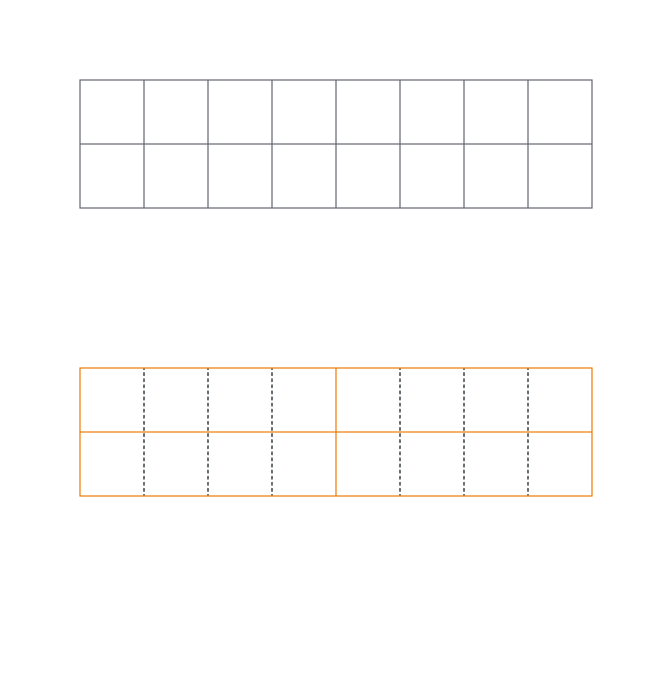

Each element in a tensor can be either a single (scalar) value or a SIMD vector
of values. This is reflected by the tensor's element_size, which is derived
from its Engine parameter (DefaultEngine[element_width=N]). For more
information, see Vectorizing tensors.
Code snippets that show individual operations are context-dependent fragments: they assume an existing tensor, coordinates, and the relevant imports. The GPU examples define functions to call from a program with an available accelerator.
Accessing tensor elements
You can address a tile tensor like a multidimensional array to access elements:
var element = tensor2d[x, y]
tensor2d[x, y] = zWhen passing separate coordinates for every sub-mode, their number must match
the tensor's flat rank. For simple layouts, this is the same as the layout's
rank: two for a 2D tensor,
three for a 3D tensor, and so on. For simple coordinates, you can pass a set of
individual coordinates, as shown above. For nested coordinates, you can pass the
coordinates as a single
Coord value. For an
example using nested coordinates, see the section on Tensor indexing and nested
layouts.
TileTensor also accepts a single logical index, which the layout maps across
its dimensions.
When you access a tensor element, the parser needs to be able to determine that you're using the correct number of coordinates. You can use compile-time assertions or constraints to guarantee that you're using the correct number of coordinates.
from layout import TileTensor
# Multi-axis indexing into a 2D tensor uses two coordinates.
def takes_2d(tensor2d: TileTensor):
comptime assert tensor2d.flat_rank == 2
var el0 = tensor2d[0, 0]
var el1 = tensor2d[0] # A single logical index is also supported.
# OR
def takes_2d_constrained(tensor2d: TileTensor) where tensor2d.flat_rank == 2:
var el0 = tensor2d[0, 0]These checks verify the number of coordinates, not their values. Neither the compiler nor the subscript operator checks that an index falls within the tensor's dimensions, so an out-of-range index reads or writes memory outside the tensor.
For information on using where clauses and comptime assertions, see the
section on comptime
constraints.
For more complicated "nested" layouts, such as tiled layouts, the flat rank doesn't match the rank of the tensor. For details, see Tensor indexing and nested layouts.
Scalar elements and vector elements
By default, each element of a TileTensor is a single (scalar) value. But a
tensor can also be vectorized, so that each logical element of the tensor
stores a set of values. Vectorizing a tensor enables more efficient code
paths for loading and storing data.
The __getitem__() method returns a SIMD vector of elements, where the size of
the vector is equal to the element_size of the tensor (default 1). As long
as the element_size is known to be 1 at the call site, you can treat the
return value as a scalar value. For example, the following function constrains
its parameter to a non-vectorized tensor using the default storage
(Engine=DefaultEngine[element_width=1]), so you can cast the element value
directly to an Int.
from layout import DefaultEngine, TileTensor
def takes_scalar_tensor(
tensor: TileTensor[.int32, Engine=DefaultEngine[element_width=1], ...]
) -> Int:
comptime assert tensor.flat_rank == 2
return Int(tensor[1, 1])You can also access elements using the
load()
and
store()
methods, which let you specify the vector size explicitly:
var elements = tensor.load[width=4]((row, col))
elements = elements * 2
tensor.store[width=4]((row, col), elements)The load() and store() methods take the indices as a Coord object.
The tuple in this example converts to Coord implicitly. A width-4 access
touches four consecutive scalar values from the mapped offset. Ensure that all
four values are in bounds and satisfy the access's alignment; these methods
don't clip accesses to the tensor's dimensions.
Tensor indexing and nested layouts
A tensor's layout may have nested modes (or sub-layouts), as described in TileTensor layouts. These layouts have one or more of their dimensions divided into sub-layouts. For example, Figure 2 shows a tensor with a nested layout:

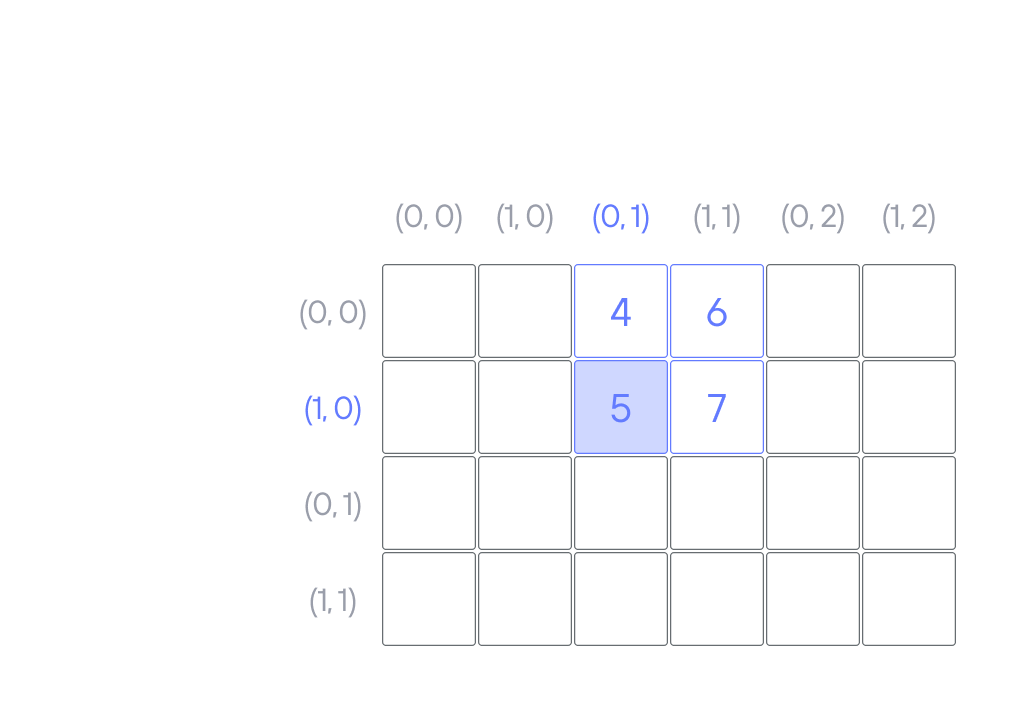

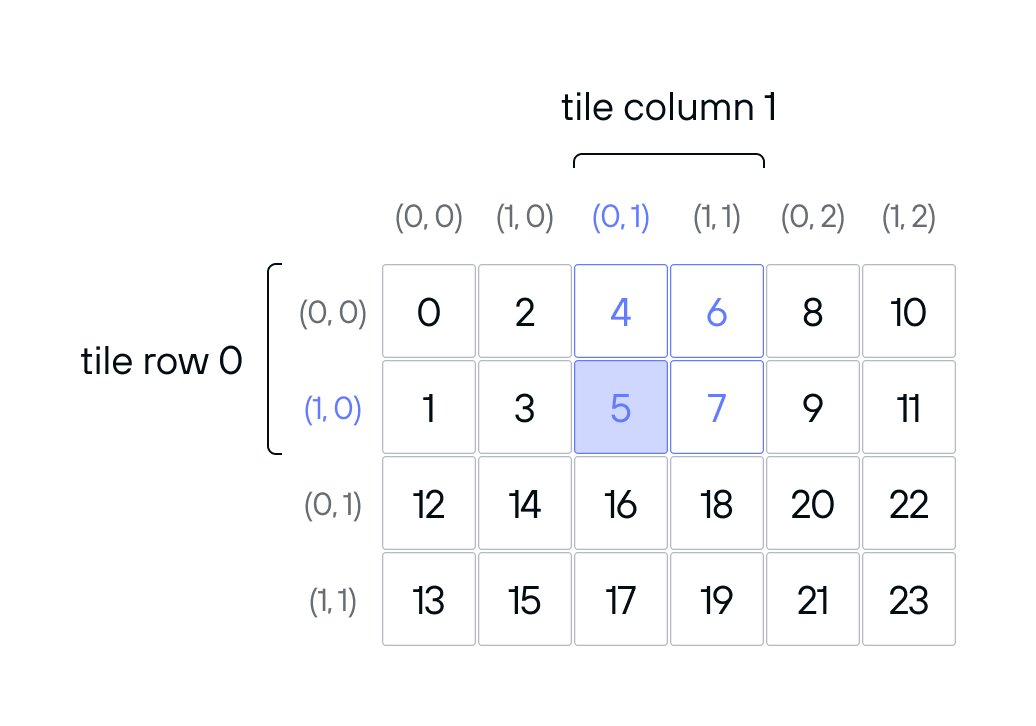

The tensor in Figure 2 has a 2D layout, but instead of being addressed with a
single coordinate on each axis, it has a pair of coordinates per axis. For
example, the coordinates ((1, 0), (0, 1)) map to the offset 6.
To access a value in a nested tensor, you can pass the nested coordinates as a
Coord struct:
from layout import Coord, Idx
var el1 = tensor[Coord(Coord(Idx[1], Idx[0]), Coord(Idx[0], Idx[1]))]You can also pass a flattened version of the coordinates, either as a single
Coord value or by passing individual indices:
var el2 = tensor[1, 0, 0, 1]When passing separate coordinates for every sub-mode, their number must match the flat rank. The tensor in Figure 2 has flat rank of 4, so this form takes four coordinates.
You can use either nested or flat Coord values with the load() and store()
methods.
Creating a TileTensor
There are several ways to create a TileTensor, depending on where the tensor
data resides:
- On the CPU.
- In GPU global memory.
- In GPU shared or local memory.
In addition to methods for creating a tensor from scratch, TileTensor
provides a number of methods for producing a new view of an existing tensor.
Creating a TileTensor on the CPU
While TileTensor is often used on the GPU, you can also use it to create
tensors for use on the CPU.
To create a TileTensor for use on the CPU, you need a
Layout and a block of memory to store
the tensor data. A common way to allocate memory for a TileTensor is to use an
Array or a List:
from std.collections import Array
from layout import TileTensor, row_major
comptime rows = 8
comptime columns = 16
comptime layout = row_major[rows, columns]()
var storage = Array[Float32, rows * columns](fill=0.0)
var tensor = TileTensor(storage, layout)Array is a statically-sized, stack-allocated array, so it's a fast and
efficient way to allocate storage for small tensors. There are
target-dependent limits on how much memory can be allocated this way, however.
This example and the following example initialize the tensor memory to zeros.
You can also create a TileTensor using a
List.
Lists are dynamically-sized and heap allocated, so this works better for large
tensors.
from std.collections import List
from layout import TileTensor, row_major
comptime rows = 1024
comptime columns = 1024
comptime buf_size = rows * columns
comptime layout = row_major[rows, columns]()
var storage = List[Float32](length=buf_size, fill=0.0)
var tensor = TileTensor(storage, layout)You can also create a TileTensor from a pointer to memory that you allocate
and free yourself. This gives you direct control over the allocation and how
it's initialized:
from std.memory import dealloc, unsafe_memset
from layout import TileTensor, row_major
comptime rows = 1024
comptime columns = 1024
comptime buf_size = rows * columns
comptime layout = row_major[rows, columns]()
var allocation = alloc[Float32]({length = buf_size})
var ptr = allocation.unsafe_ptr()
unsafe_memset(ptr, 0, buf_size)
var tensor = TileTensor(ptr, layout)
# ... use the tensor and any views of it ...
dealloc(allocation^)The alloc() function
returns an
Allocation that owns
the memory. The tensor only borrows it, so keep the allocation alive while the
tensor or any view of it (such as a tile) is in use. Free it with
dealloc() after the
last use, and don't access the tensor or its views afterward. The compiler
requires you to dispose of the allocation on every path out of the function,
including paths that raise an error.
This example initializes the memory with
unsafe_memset()
instead of the tensor's
fill() method. The fill()
method initializes the tensor element by element without vectorization, so it
may be slow for large tensors.
Creating a TileTensor on the GPU
When creating a TileTensor for use on the GPU, you need to consider which
memory space the tensor data will be stored in:
- Global memory. The GPU's largest (and slowest) memory space, global memory is the primary means of passing data into and out of the GPU.
- Shared or local memory. Shared memory is fast, on-chip memory shared by a group of threads. Local memory is specific to a single thread.
Creating a TileTensor in global memory
You must allocate global memory from the host side, by allocating a
DeviceBuffer.
On the CPU, you can construct a TileTensor using a DeviceBuffer as its
storage. Although you can create this tensor on the CPU and pass it in to a
kernel function, you can't directly modify its values on the CPU, since the
memory is on the GPU.
The DeviceBuffer constructor used below produces non-vectorized
DefaultEngine storage in the generic address space. Constructing a tensor
from buffer.device_ptr() instead uses DevicePointerEngine; a kernel taking
that tensor must also declare that engine. Neither form transfers ownership of
the backing buffer to the tensor.
In both cases, if you want to initialize data for the tensor from the CPU, you
can call
enqueue_copy()
or
enqueue_memset()
on the buffer prior to invoking the kernel. The following example shows
initializing a TileTensor from the CPU and passing it to a GPU kernel.
from max.gpu import global_idx
from max.gpu.host import DeviceContext
from layout import TileTensor
from layout.layout import row_major
def initialize_tensor_from_cpu_example() raises:
comptime dtype = DType.float32
comptime rows = 32
comptime cols = 8
comptime block_size = 8
comptime row_blocks = rows // block_size
comptime col_blocks = cols // block_size
comptime input_layout = row_major[rows, cols]()
comptime size: Int = rows * cols
def kernel(tensor: TileTensor[dtype, type_of(input_layout), MutAnyOrigin]):
comptime assert tensor.flat_rank == 2
if (
global_idx.y < Int(tensor.dim[0]())
and global_idx.x < Int(tensor.dim[1]())
):
tensor[global_idx.y, global_idx.x] = (
tensor[global_idx.y, global_idx.x] + 1
)
var ctx = DeviceContext()
var host_buf = ctx.enqueue_create_host_buffer[dtype](size)
var dev_buf = ctx.enqueue_create_buffer[dtype](size)
ctx.synchronize()
var expected_values = List[Scalar[dtype]](length=size, fill=0)
for i in range(size):
host_buf[i] = Scalar[dtype](i)
expected_values[i] = Scalar[dtype](i + 1)
ctx.enqueue_copy(dev_buf, host_buf)
var tensor = TileTensor(dev_buf, input_layout).as_unsafe_any_origin()
ctx.enqueue_function[kernel](
tensor,
grid_dim=(col_blocks, row_blocks),
block_dim=(block_size, block_size),
)
ctx.enqueue_copy(host_buf, dev_buf)
ctx.synchronize()
for i in range(rows * cols):
if host_buf[i] != expected_values[i]:
raise Error(
String("Error at position {} expected {} got {}").format(
i, expected_values[i], host_buf[i]
)
)The origin cast matches the kernel's MutAnyOrigin parameter. It doesn't make
device memory accessible on the host or change who owns it. The cast disables
origin and exclusivity checks, so keep the device buffer alive until the queued
work finishes. The example synchronizes before reading the copied host buffer.
Creating a TileTensor in shared or local memory
To create a tensor on the GPU in shared memory or local memory, use the
stack_allocation()
function from the tile_tensor module to allocate storage in the appropriate
memory space.
Both shared and local memory are very limited resources, so a common pattern is to copy a small tile of a larger tensor into shared memory or local memory to reduce memory access time.
from layout import stack_allocation, row_major
comptime tile_layout = row_major[block_size, block_size]()
var shared_tile = stack_allocation[
dtype, address_space=.SHARED
](tile_layout)In the case of shared memory, all threads in a thread block see the same allocation. For local or register memory, each thread gets a separate allocation.
Allocating a tensor in local memory is usually an indirect way to store values
in registers. There's no way to explicitly allocate registers.
However, the compiler can promote some local memory allocations to registers. To
enable this optimization, keep the size of the tensor small, and keep all
indexing into the tensor static—for example, using comptime for loops.
Tiling tensors
A fundamental pattern for using a tile tensor is to divide the tensor into smaller tiles to achieve easier addressing, better data locality and cache efficiency. In a GPU kernel you may want to select a tile that corresponds to the size of a thread block. For example, given a 2D thread block of 16x16 threads, you could use a 16x16 tile (with each thread handling one element in the tile) or a 64x16 tile (with each thread handling 4 elements from the tensor).
Tiles are most commonly 1D or 2D. For element-wise calculations, where the output value for a given tensor element depends on only one input value, 1D tiles are easy to reason about. For calculations that involve neighboring elements, 2D tiles can help maintain data locality. For example, matrix multiplication or 2D convolution operations usually use 2D tiles.
TileTensor provides a tile() method that extracts a tile from the parent
tensor. This tile is a new TileTensor that's a view into the original tensor:
it doesn't copy any data, but shares the backing memory of the original tensor.
Tiling is useful for operations like copying a subset of a tensor between global memory and shared memory. Extracting a tile from the global tensor with the same dimensions as the shared memory tensor allows you to use the same addressing for both tensors, instead of doing a bunch of math with thread and block indexes.
Extracting a tile
The
TileTensor.tile()
method extracts a tile with a given size at a given set of coordinates. It works
on both flat and nested parent layouts. The flat case is shown first, followed
by the nested case.
from std.collections import List
from layout import TileTensor, row_major
comptime tile_size = 32
comptime rows = 64
comptime cols = 128
comptime layout = row_major[rows, cols]()
var storage = List[Float32](capacity=rows * cols)
for i in range(rows * cols):
storage.append(Float32(i))
var tensor = TileTensor(storage, layout)
var tile = tensor.tile[tile_size, tile_size](0, 1)
This code creates a 64x128 tensor. The tile() method treats the tensor as a
matrix of 32x32 tiles, and extracts the tile at row 0, column 1, as shown in
Figure 3.

Note that the coordinates are specified in tiles.
The layout of the extracted tile depends on the layout of the parent tensor. For example, if the parent tensor has a row-major layout, as above, the extracted tile also has a row-major layout (with a stride of 1 between columns). But the stride between rows is the same as the parent's row stride.
On a nested (tiled) parent layout, tile() reads each mode the way
coordinates index it: the first leaf varies fastest. Tile c of size t along
a mode starts at element c * t of that mode, and the tile keeps the leading
leaves of each mode that it spans, with their strides. This matches the CuTe
local_tile operation. When the first leaf of each mode is a fragment
dimension, as in the output of blocked_product(), a tile of the fragment size
is exactly one fragment.
For the shape ((3, 2), (4, 2)), a 2x2 grid of 3x4 fragments, pass the
fragment dimensions as the tile size and one coordinate per mode to select the
grid position: the first coordinate selects the tile along the row mode, the
second along the column mode.
from std.collections import Array
from layout import TileTensor
from layout.layout import blocked_product, row_major
# A tiled layout: a 2x2 grid of 3x4 fragments. `blocked_product()`
# puts the fragment first in each mode: shape ((3, 2), (4, 2)).
comptime frag_rows = 3
comptime frag_cols = 4
comptime grid_rows = 2
comptime grid_cols = 2
comptime total = grid_rows * frag_rows * grid_cols * frag_cols
var layout = blocked_product(
row_major[frag_rows, frag_cols](), row_major[grid_rows, grid_cols]()
)
def fragment_value(i: Int) {imm} -> Float32:
return Float32(i)
var storage = Array[Float32, total](fill_with=fragment_value)
var tensor = TileTensor(storage, layout)
# tile() indexes each mode first leaf first, so a frag_rows x frag_cols
# tile covers exactly one fragment. Here (1, 0) selects grid row 1,
# column 0.
var fragment = tensor.tile[frag_rows, frag_cols](1, 0)The returned fragment is a rank-2 view of shape (frag_rows, frag_cols) whose
strides are the strides of each mode's first leaf. A tile that spans several
leaves of a mode keeps them nested, so a 6x4 tile of this layout has the row
mode (3, 2). Along a nested mode, the tile size must be a product of the
mode's leading leaves, the last one possibly cut to a divisor of its extent;
any other size is a compile-time error. See
TileTensor layouts for how to
construct nested layouts with
blocked_product()
and other functions.
Iterating over tiles
To visit every tile in a tensor, loop over the tile coordinates and call
tile() for each one:
from std.math import ceildiv
# given a tensor of size rows x cols
comptime num_row_tiles = ceildiv(rows, tile_size)
comptime num_col_tiles = ceildiv(cols, tile_size)
for i in range(num_row_tiles):
for j in range(num_col_tiles):
var tile = tensor.tile[tile_size, tile_size](i, j)
# ... do something with the tileBecause each tile is a view, this loop doesn't copy any data.
Stepping through a buffer of tiles
When a buffer holds a sequence of equally shaped tiles, such as the stages of a
pipelined shared-memory buffer,
TileTensorIter steps
through it one tile at a time. You create the iterator from a pointer to the
buffer, the layout of one tile, and a bound: the buffer's size in elements.
Dereferencing the iterator with [] (or calling get()) returns a TileTensor
view of the current tile, and += advances it:
from std.collections import Array
from layout import row_major
from layout.tile_iterator import TileTensorIter
comptime tile_rows = 4
comptime tile_cols = 4
comptime tile_size = tile_rows * tile_cols
comptime num_tiles = 8
comptime buf_size = num_tiles * tile_size
var storage = Array[Int16, buf_size](
fill_with=lambda (i: Int) -> Int16: Int16(i)
)
# The tile layout's dimensions are all known, so the tiles sit back to
# back: the iterator steps by the tile's element count.
var tiles = TileTensorIter[.int16, _, _](
storage.unsafe_ptr(),
row_major[tile_rows, tile_cols](),
bound=buf_size,
)
for i in range(num_tiles):
var tile = tiles[]
# ... do something with the tile
tiles += 1When the tile layout has run-time dimensions, or the tiles aren't back to back,
pass the distance between consecutive tiles as stride, and optionally the
first tile's position as offset, both in elements.
An iterator created with circular=True wraps back to the start of the buffer
when it reaches bound. This suits a multi-stage ring buffer, where the kernel
computes on one stage while it fills the next. The next() method returns a
copy of the iterator advanced by one tile (or by the number you pass), without
moving the original:
comptime num_stages = 3
comptime ring_size = num_stages * tile_size
var ring_storage = Array[Int16, ring_size](
fill_with=lambda (i: Int) -> Int16: Int16(i)
)
var stages = TileTensorIter[.int16, _, _, circular=True](
ring_storage.unsafe_ptr(),
row_major[tile_rows, tile_cols](),
bound=ring_size,
)
for k in range(8):
# Tile k lands in stage k % num_stages.
var stage = stages[]
# next() returns a copy that is one tile ahead, wrapping at bound.
var next_stage = stages.next()
# ... compute on stage while next_stage is being filled
stages += 1Like tile(), the iterator never clips a tile. An iterator created with
masked=True also stores a run-time count of valid rows, num_valid_rows,
which you pass to the constructor, for tiles that reach past the edge of a
tensor. The iterator doesn't shrink the tile, so pass that count as the bound
when you copy the tile, as described in
Handling tensor boundaries.
Handling tensor boundaries
The tile() method doesn't clip a tile at the edge of its parent tensor: the
tile always has the shape you request. When a tensor's dimensions aren't
multiples of the tile size, the last tile along each axis extends past the
tensor's data, and accessing those positions reads or writes memory outside the
tensor. (A masked TileTensorIter carries a valid-row count without clipping
the tile.)
To process an incomplete edge tile, compare each position's coordinates in the parent tensor against the parent's dimensions before you access it:
from std.collections import Array
from std.math import ceildiv
from layout import TileTensor, row_major
comptime rows = 6
comptime cols = 10
comptime tile_size = 4
var storage = Array[Float32, rows * cols](fill=1.0)
var tensor = TileTensor(storage, row_major[rows, cols]())
var total = Float32(0)
for tile_row in range(ceildiv(rows, tile_size)):
for tile_col in range(ceildiv(cols, tile_size)):
var tile = tensor.tile[tile_size, tile_size](tile_row, tile_col)
# The tile's top-left corner, in the parent's coordinates.
var row0 = tile_row * tile_size
var col0 = tile_col * tile_size
for i in range(tile_size):
for j in range(tile_size):
if row0 + i < rows and col0 + j < cols:
total += tile[i, j][0]The
tile_with_offset()
method returns the tile's corner coordinates along with the tile, so you don't
need to compute them yourself. It works only on tensors with flat (non-nested)
layouts.
When you load tiles from global memory into shared memory on the GPU, a masked
asynchronous copy can handle the boundary for you. The
GenericToSharedAsyncTileCopier
copier, created with masked=True, zero-fills the destination for source rows
past a bound instead of reading them. Because a tile from tile() always has
its full static row count, pass the number of valid rows to its
copy_bounded()
method. The bound applies to rows only, so columns past the edge still need
their own handling. For lower-level control, the
copy_from_async()
method accepts the same masking options directly.
Vectorizing tensors
When working with tensors, it's frequently efficient to access more than one value at a time. For example, having a single GPU thread calculate multiple output values ("thread coarsening") can frequently improve performance. Likewise, when copying data from one memory space to another, it's often helpful for each thread to copy a SIMD vector worth of values, instead of a single value. Many GPUs have vectorized copy instructions that can make copying more efficient.
To choose the optimum vector size, you need to know what vector operations your hardware supports for the data type you're working with. (For example, if you're working with 4 byte values on a GPU that supports 16 byte copy operations, you can use a vector width of 4.)
The
vectorize()
method creates a new view of the tensor where each element of the tensor is a
vector of values.
var vectorized_tensor = tensor.vectorize[1, 4]()The vectorized tensor is a view of the original tensor, pointing to the same
data. The underlying number of scalar values remains the same, but the tensor
layout and engine element width change, as shown in Figure 4.
unsafe_ptr() still returns a pointer to scalar values, so its offsets are in
scalar units, not vector elements.

Partitioning a tensor across threads
When working with tensors on the GPU, it's sometimes desirable to distribute the
elements of a tensor across the threads in a thread block. The
distribute()
method takes a thread layout and a thread ID and returns a thread-specific
fragment of the tensor. Many of the tensor copy APIs require you to pass in a
thread layout, and call distribute() internally.
The thread layout is tiled across the tensor. The Nth thread receives a
fragment consisting of the Nth value from each tile. For example, Figure 5
shows how distribute() forms fragments given a 4x4, row-major tensor and a
2x2, column-major thread layout:

In Figure 5, the numbers in the data layout represent offsets into storage, as usual. The numbers in the thread layout represent thread IDs.
The example in Figure 5 uses a small thread layout for illustration purposes. In practice, it's usually optimal to use a thread layout size that's a multiple of the warp size of your GPU, so the work is divided across all available threads. When dividing work across multiple warps, calculate the thread's ID based on its position in the block:
from max.gpu import block_dim, thread_idx
var thread_id = (
thread_idx.z * block_dim.y * block_dim.x
+ thread_idx.y * block_dim.x + thread_idx.x
)When dividing work across a single warp, you can use
lane_id() as the
thread ID. Lane ID represents a thread's ID within the warp (from 0 to
WARP_SIZE - 1).
The following code vectorizes and partitions a tensor over a full warp worth of threads:
from max.gpu import WARP_SIZE, lane_id
from layout import row_major
comptime simd_size = 4
comptime thread_layout = row_major[WARP_SIZE // simd_size, simd_size]()
var fragment = tile.vectorize[1, simd_size]().distribute[thread_layout](lane_id())Given a 16x16 tile size, a warp size of 32 and a simd_size of 4, this code
first produces a 16x4 vectorized view. Distributing it with the 8x4 row-major
thread layout gives each thread a 2x1 fragment of width-4 elements, or eight
scalar values.
Splitting a tensor
The
split()
method divides a tensor into non-overlapping partitions along an axis. Unlike
tile(), which returns a single sub-tile, split() returns every partition at
once (or a single requested partition). Split views are immutable, so call
as_imm()
on a mutable tensor first.
split() has two forms. The static form, split[count](), takes a compile-time
partition count and returns a StaticTuple of count equal-sized views. The
split axis must be statically divisible by count:
from std.collections import Array
from layout import TileTensor, row_major
def split_value(i: Int) {imm} -> Int32:
return Int32(i)
var data = Array[Int32, 16](fill_with=split_value)
var tensor = TileTensor(data, row_major[4, 4]())
# Split into 2 equal halves along axis 0. Split views are immutable,
# so call as_imm() first.
var halves = tensor.as_imm().split[2]()The dynamic form, split(count, idx), takes a run-time partition count and
returns a single partition with a run-time-sized split axis:
from std.collections import Array
from layout import TileTensor, row_major
def partition_value(i: Int) {imm} -> Int32:
return Int32(i)
var data = Array[Int32, 16](fill_with=partition_value)
var tensor = TileTensor(data, row_major[8, 2]())
# Return a single runtime-sized partition: split axis 0 into 4 parts
# and take partition index 1.
var partition = tensor.as_imm().split[axis=0](4, 1)By default, the dynamic form divides the axis as evenly as possible. The
optional split_alignment parameter rounds each partition's base size up to a
multiple of the given alignment, which can make the leading partitions larger
and clamp (or empty) the trailing ones.
Copying tensors
TileTensor provides a
copy_from()
method for copying tensor data. In addition, the
tile_io module provides a
set of utilities specialized for copying between various GPU memory spaces. All
of the tensor copy methods respect the layouts—so you can transform a tensor by
copying it to a tensor with a different layout (provided both layouts have the
same total number of elements).
The TileTensor.copy_from() method copies data from a source tensor into the
current tensor, which may be in a different memory space. Because the copy is
layout-aware, the source and destination can have different shapes or strides as
long as they agree on the total element count and element size: each logical
element is loaded using the source's layout and stored using the destination's
layout. The source and destination dtypes may also differ, in which case each
element is cast to the destination dtype:
from std.collections import Array
from layout import TileTensor, row_major
var src_data: Array[Int32, 4] = [1, 2, 3, 4]
var dst_data = Array[Float32, 4](fill=0.0)
var src = TileTensor(src_data, row_major[2, 2]())
var dst = TileTensor(dst_data, row_major[2, 2]())
# Copy from src into dst, casting each Int32 element to Float32.
dst.copy_from(src)This method copies data element-by-element. It doesn't divide work among
multiple threads. If using this method on GPU, use distribute() to create
thread-specific tensor fragments for copying. Or use the thread-aware copy
methods discussed in the next section.
When both tensors have fully static, row-major layouts, copy_from() widens the
copy to a SIMD load, cast, and SIMD store, using the narrower of the two dtypes'
native SIMD widths. You can also vectorize() the tensors before calling
copy_from().
Tile copiers
The tile_io package
includes a TileCopier trait and a set of specialized tile copier structs for
moving tensors between GPU memory spaces, such as copying from shared memory to
local memory. These copiers are all thread-layout-aware: instead of passing in
tensor fragments, you configure the copier with a thread layout which it uses to
partition the work.
As with the copy_from() method, you can use the vectorize()
method prior to copying to take advantage of vectorized copy operations.
Many of the tile copiers have very specific requirements for the shape of the copied tensor and thread layout, based on the specific GPU and data type in use.
The TileCopier trait defines a basic interface for all synchronous tile
copiers, including a copy() method that takes source and destination tensors
as arguments. By parameterizing a function on the TileCopier trait, you can
pass either one of the pre-existing tile copiers, or a custom implementation
optimized for different hardware (such as a tile copier that uses NVIDIA's
tensor memory accelerator).
The individual tile copiers are parameterized structs that provide a method for copying between different memory spaces. Each copier covers a specific path, such as copying from global memory to shared memory:
GenericToSharedTileCopierSharedToGenericTileCopierGenericToLocalTileCopierLocalToGenericTileCopierSharedToLocalTileCopierLocalToSharedTileCopier
In addition to the synchronous tile copiers, the tile_io module currently
includes one asynchronous tile copier:
This copier conforms to a separate AsyncTileCopier trait. The traits are
separate because the async tile copier has different semantics from a
synchronous tile copier.
The following example exercises the GenericToSharedAsyncTileCopier and
SharedToGenericTileCopier types.
from max.gpu import (
thread_idx,
block_idx,
global_idx,
barrier,
WARP_SIZE,
)
from max.gpu.host import DeviceContext
from max.gpu.memory import async_copy_commit_group, async_copy_wait_all
from layout import TileTensor, stack_allocation
from layout.tile_io import GenericToSharedAsyncTileCopier, SharedToGenericTileCopier
from layout.layout import row_major
from std.sys import align_of
def tile_copier_example() raises:
comptime dtype = DType.float32
comptime rows = 128
comptime cols = 128
comptime block_size = 16
comptime num_row_blocks = rows // block_size
comptime num_col_blocks = cols // block_size
comptime input_layout = row_major[rows, cols]()
comptime simd_width = 4
def kernel(
tensor: TileTensor[dtype, type_of(input_layout), MutAnyOrigin]
):
comptime assert tensor.flat_rank == 2
var global_tile = tensor.tile[block_size, block_size](
Int(block_idx.y), Int(block_idx.x)
)
comptime tile_layout = row_major[block_size, block_size]()
var shared_tile = stack_allocation[
dtype,
address_space=.SHARED,
alignment=align_of[SIMD[dtype, simd_width]](),
](tile_layout)
comptime assert shared_tile.flat_rank == 2
comptime thread_layout = row_major[WARP_SIZE // simd_width, simd_width]()
GenericToSharedAsyncTileCopier[
thread_layout, num_threads=block_size * block_size
]().copy(
shared_tile.vectorize[1, simd_width](),
global_tile.vectorize[1, simd_width](),
)
async_copy_commit_group()
async_copy_wait_all()
barrier()
if global_idx.y < rows and global_idx.x < cols:
shared_tile[thread_idx.y, thread_idx.x] = (
shared_tile[thread_idx.y, thread_idx.x] + 1
)
barrier()
SharedToGenericTileCopier[
thread_layout, num_threads=block_size * block_size
]().copy(
global_tile.vectorize[1, simd_width](),
shared_tile.vectorize[1, simd_width](),
)
var ctx = DeviceContext()
var host_buf = ctx.enqueue_create_host_buffer[dtype](rows * cols)
var dev_buf = ctx.enqueue_create_buffer[dtype](rows * cols)
for i in range(rows * cols):
host_buf[i] = Float32(i)
var tensor = TileTensor(dev_buf, input_layout).as_unsafe_any_origin()
ctx.enqueue_copy(dev_buf, host_buf)
ctx.enqueue_function[kernel](
tensor,
grid_dim=(num_col_blocks, num_row_blocks),
block_dim=(block_size, block_size),
)
ctx.enqueue_copy(host_buf, dev_buf)
ctx.synchronize()
for i in range(rows * cols):
if host_buf[i] != Float32(i + 1):
raise Error(
String(
"Unexpected value ", host_buf[i], " at position ", i
)
)Summary
In this document, we've explored the fundamental concepts and practical usage of
TileTensor. At its core, TileTensor provides
a powerful abstraction for working with multi-dimensional data.
By combining a layout (which defines memory organization), a data type, and a
memory pointer, TileTensor enables flexible and efficient data manipulation
without unnecessary copying of the underlying data.
We covered several essential tensor operations that form the
foundation of working with TileTensor, including creating tensors,
accessing tensor elements, and copying data between tensors.
We also covered key patterns for optimizing data access:
- Tiling tensors for data locality. Accessing tensors one tile at a time can improve cache efficiency. On the GPU, tiling can allow the threads of a thread block to share high-speed access to a subset of a tensor.
- Vectorizing tensors for more efficient data loads and stores.
- Partitioning or distributing tensors into thread-local fragments for processing.
These patterns provide the building blocks for writing efficient kernels in Mojo while maintaining clean, readable code.
To see some practical examples of TileTensor in use, see
Optimize custom ops for GPUs with Mojo.
